Gas Lpg Diesel Fired Boiler

The gas/oil fired boiler is an environmentally friendly boiler. It has won the majority of the market due to its advantages of low emissions, long service life and high degree of automation.

Yuanda Boiler manufactures gas/oil fire tube boiler, gas/oil vertical boiler, gas/oil water tube boiler.

It can provide steam or hot water for the factory, can be used in a variety of industries such as food, beverage, milk, hotel, textile, laundry, garment, pharmaceutical, building materials, chemicals, paper, foam, feed mills, edible oils, rice mills, dairy, wood processing, refineries and rubber. , packaging, pharm industry...

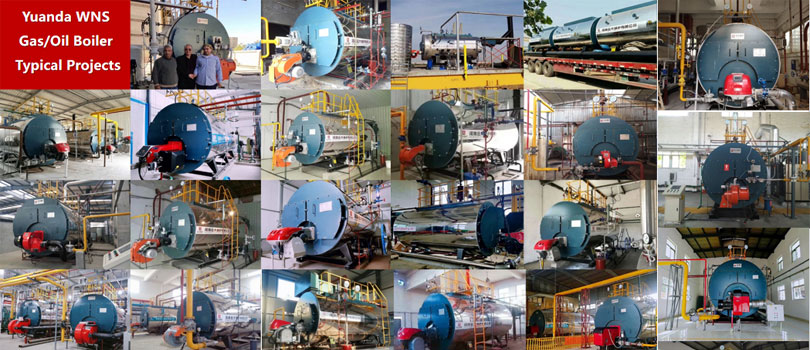

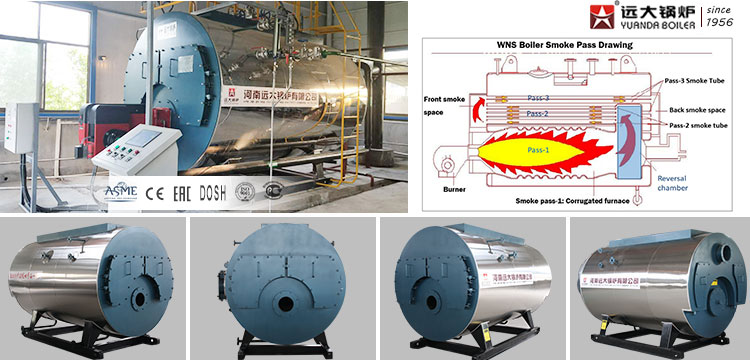

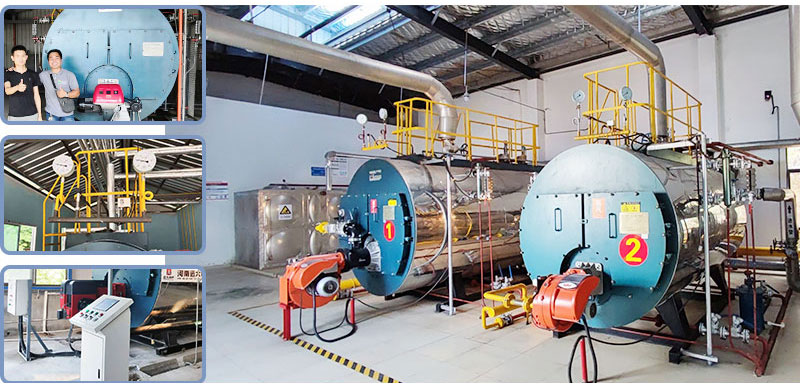

WNS Gas/Diesel Fired Firetube Boiler

●3-step wet structure, larger corrugated furnace, threaded smoke tube with single expansion welding.

●Equipped with burners and accessories from top international brands. Automatic operation of burner ignition, flame off, big/small fire switch.

●PLC automatic control, interlock system for burner, water tank, pressure, flame.

●Energy saving device, such as condenser, preheater, condensate water recovery, etc.

●Dispensing device, TDS system optional.

●With ASME CE EAC DOSH GOST CRN quality certificate, exported to all over the world.

Boiler Advantages

1. High Security, 100% Safe Operation

Five-stage water level checking, anti-dry heating system;

Four-stage pressure protection;

Explosion-proof door with fire viewer;

Excessive smoke temperature alarm.

2. 98.6% high efficiency, saving fuel and operating costs

Large corrugated furnace, patented three-pass fire tube design;

Steam and water separator, guarantees high steam quality with a humidity of less than 1%;

Double insulating layer of 12 mm thick aluminum silicate;

Finned tube design economizer with aluminum silicate insulation, which greatly reduces heat loss.

3. Long service life and convenient for maintenance

Reverse flame chamber with wet backing;

Solid round steel tension rod design;

Fast solidification and high strength refractory building materials;

Double opening door at the front and back.

4. Skid/container mounted boiler, no installation needed

The entire boiler system, including all necessary auxiliaries, is pre-installed on the skid and ordered by the manufacturer, without the need for on-site installation.

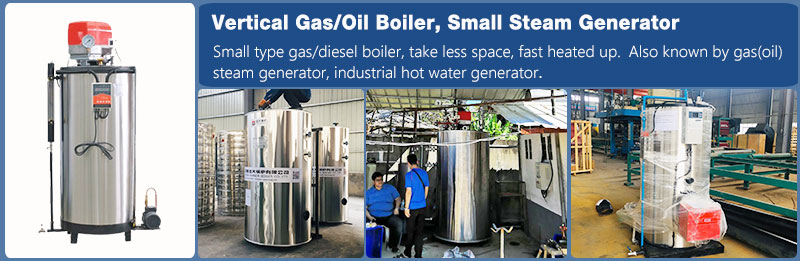

LHS LSS Vertical Gas/Oil Boiler

LHS LSS Small gas/diesel boiler, vertical boiler, gas/diesel steam generator or hot water generator. Suitable for 50kg-2000 kg, 120kw-1400 kw, 10hp-150 hp.

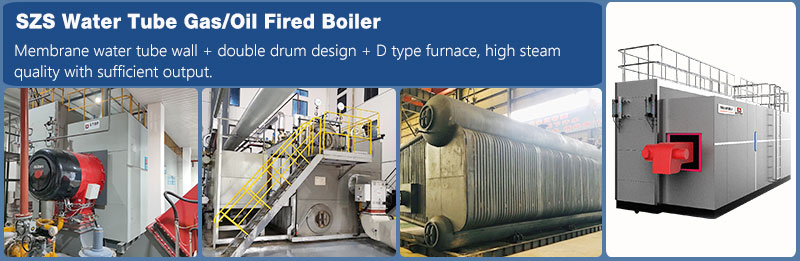

SZS Gas/Diesel Watertube Boiler

SZS water tube steam and hot water boiler, 5-40 ton/h, water membrane wall design, high efficiency 98%, larger combustion furnace. Suitable for superheated steam production.

Our Service

Pre-sale service:

1. Design一 We help customer choose the best boiler model according to the different requirements of different industries.

2. Drawings and files一 Supply quality certificates, factory inspection, fuel consumption calculation, cost analysis, foundation plans, layout plans, boiler room plans according to your needs, etc.

3. Technical Solution 一 Design a complete boiler solution with installation materials for your company.

4. Competitive price一As a boiler factory, we have the lowest price and high quality.

After-sales service:

1. Provide a full range of boilers and original spare parts.

2. Installation and commissioning service from foreign engineers is available.

3. On-site training, to ensure safe operation.

4. 24 hours online, quick response.

5. Free maintenance and repair for one year and lifetime service.

■ Founded in 1956, a quality supplier assessed, certified and inspected by SGS Group

■ CE ASME DOSH EAC GOST ISO high standard boiler certification

■ More than 17 years of export experience, gold medal supplier, payment and delivery guaranteed.

■ Integrating research&development production and sales

■ Support video/VR or third party factory inspection

■ Best seller in 108 countries, more than 100,000 customers
